Airfob Edge Reader Ultimate
Categories Attendance and access control, MOCA system

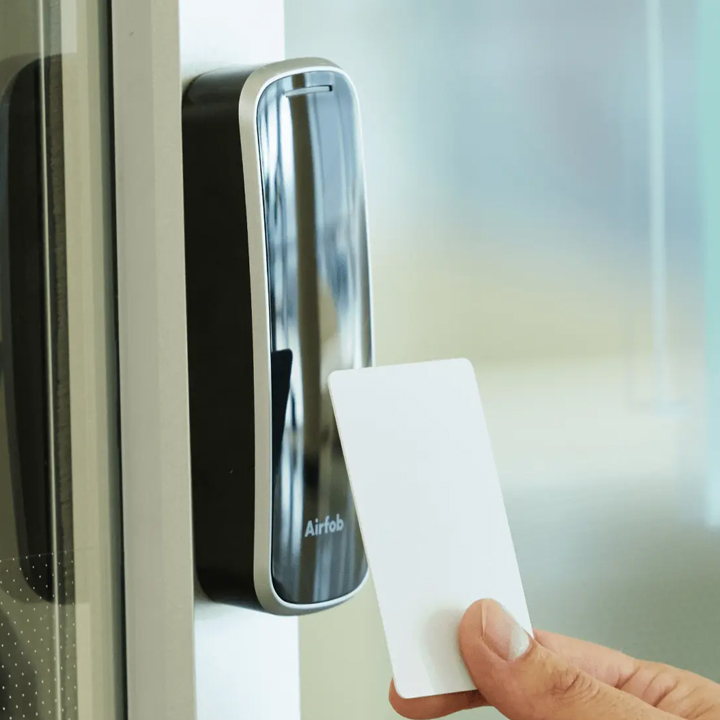

The Airfob Edge Ultimate is a robust RFID reader designed for seamless mobile and card-based access control. It can be easily configured to become another arm of your brand, ensuring a seamlessly compatibility with Airfob Space Cloud. This RFID door reader works with mobile phones or cards, thus offering an excellent user experience. it is equipped with IP65/67 grade water protection, which makes it suitable for any climate.
Available in Dubai
Ships Across Africa
There are no complex installation requirements; it is feasible to transmit both data and power using a single cable. The door credential reader ensures a consistent and reliable performance to enjoy seamless security access in both indoor and outdoor applications.
Product Features
BLE/NFC
- Specifically made for our secure and convenient mobile credentials, Airfob Space.
Cloud-Based Management
- These readers can be controlled by the Airfob Pro portal on the web or app from any location.
RFID Compatibility
- Airfob Edge Reader Ultimate fully supports 13.56 MHz RFID cards.
IP65 / IP67
- Offering optimum water resistance, which makes it ideal for rough outdoor environments.
POE
- Using a single Ethernet cable that simultaneously connects to the network and power facilitates saving time for installation and cost.
IK08
- Designed to be used in busy environments, it protects up to 5 joules of impact.
Benefits
- Easy Installation: Just connect it with power and register it with the Airfob Pro app to make it live.
- Quality Made in Korea: Manufactured with the state-of-the-art technology from Korea with a proven work life for years.
- No Door Controllers Required: Our readers themselves act as controllers, verifying credentials and opening doors. This simplifies installation and cuts upfront costs.
- No More Patch Tuesdays: Our cloud-based solution eliminates any additional need for on-site servers and software maintenance, automatically providing customers with the latest version.
Product Specifications: AE-MU
- 125kHz Card Compatibility: EM
- 13.56MHz Card Compatibility: MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
- CPU: 1.0GHz
- Memory: 4GB Flash + 64MB SDRAM
- Mobile Card: NFC, BLE
- IP Rating: IP65, IP67
- IK Rating: IK08
- Ethernet: 10/100 Mbps, auto MDI/MDI-X
- RS-485: 1ch Master or Slave
- Wiegand: 1ch Input or Output
- TTL: 2ch Input
- Relay: 1 Relay
- POE: IEEE 802.3af compliant
- Sound: Multi-tone Buzzer
- Operating Temperature: -20°C ~ 50°C
- Operating Humidity: 0% ~ 95%, non-condensing
- Power: DC 12V
- Size (WxHxD, mm): 48 x 145 x 27
- Certifications: CE, FCC, KC, RoHS, REACH, WEEE, SIG, TELEC, UKCA
